IR Infrared Obstacle Avoidance Sensor | Proximity Line Follower Module

88.00

  • Adjustable Range using Preset (Potentiometer Onboard)
  • Operating Voltage: 5V DC
  • Digital Output   : Logic one (+3.5V DC) | Logic zero (0V DC)
  • Mounting Hole of 2.5mm diameter for Easy Mounting.
  • RED LED Status indicators for  Obstacle.
  • Useful for various Robotic Applications, Room Visitor Counter Systems, etc.
  • Also use for Home, office, Industrial Automation IoT Research & Development, DIY Student Project Hobby, etc.
  • Detecting white/black lines (in line follower Robots) or bright/dark objects (in object identification Robot)
  • Compatible for Interfacing with Arduino,8051,AVR,PIC,ARM,Raspberry Pi & All Microcontroller.

43 in stock

Description

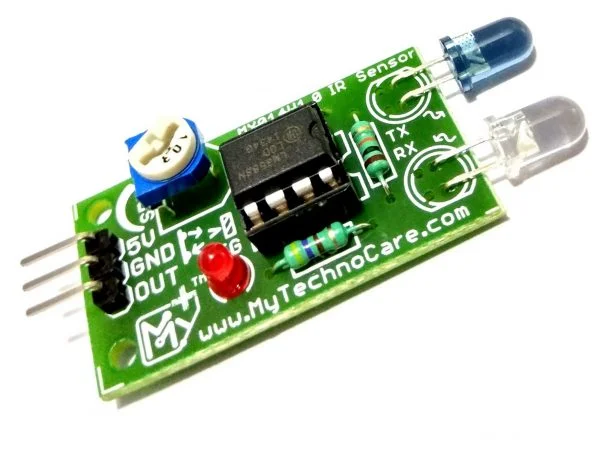

IR Infrared Obstacle Avoidance Sensor | Proximity Detection Module Board

Mostly IR Sensor is used for Interfacing with Arduino,8051, AVR, PIC, ARM, Raspberry Pi & All Micro-controllers so that IR Infrared Obstacle Avoidance Sensor can also be used in Home, office, Industrial Automation IoT Research & Development, DIY Student Project Hobby R&D.

About IR Infrared Obstacle Avoidance Sensor

First of all IR Module is a multipurpose infrared sensor that is mostly for obstacle sensing, line sensing, etc., and also as an encoder sensor. Furthermore, this Infrared sensor provides a digital output. The sensor outputs a logic one (+3.5V) at the digital output when an object is placed in front of the sensor and logic zero (0V) when there is no object in front of the sensor. Even more, it has an Onboard RED LED that is used to indicate the presence of an object.

Similarly, this is also known as IR PROXIMITY/OBSTACLE SENSOR. This module is designed to work with almost all ARDUINO boards and MICROCONTROLLERs like Raspberry pi, AVR, PIC, 8051, ARM, etc.

Since the sensor module works on INFRARED, for obstacles with reflective surfaces (white-colored), the maximum range will be higher and for non-reflective surfaces (black-colored), and the maximum range will be lower. This can, in turn, be used for detecting white/black lines (in line follower ROBOTs) or bright/dark objects (in object identification ROBOTs)

Features of InfraRed/IR Module Circuit:

  • Adjustable Range using Preset (Using Onboard Potentiometer)
  • Operating Voltage: 5V DC
  • Digital Output   : Logic one (+3.5V DC) | Logic zero (0V DC)
  • Mounting Hole of 2.5mm diameter for Easy Mounting.
  • This is used for detecting white/black lines (in line follower ROBOTs) or bright/dark objects (in object identification ROBOTs)
  • Useful for various Robotic Applications, Room Visitor Counter Systems, etc.
  • LED status indicators to indicate the Obstacle (RED LED) status.
  • It is compatible with digital microcontrollers like Arduino, Raspberry Pi, ARM, AVR, PIC, 8051, etc.

Package Contents:

1 x Single Channel IR Sensor Module

Have any Queries, Please Contact Us




Additional information

Weight36 g
Dimensions38 × 20 × 9 mm
Condition

New: A brand-new, unused and undamaged item.

Brand

MY TechnoCare

MPN

MY014V1.0

Functionality

Obstacle Avoidance,Robotic,Industrial Project R&D

Utility

Research & Development, Education, Home DIY Proj

Weight

<35 Gram

Power Supply

5 Volt DC

PCB Quality

FR4 Glass epoxy, High Quality

Installation

Four Mounting holes for Easy Mounting

Connectivity

0.1" (2.54mm) Male Header & Screw Terminal block

Display Type

3 mm LED Indicator (RED : Object Detection Status)

Sensor Range

1-15 cm(Depends on Light environment)

Range Adjustment

10k Variable Resistor

Type

IR (Infrared) Proximity Sensor Module

Microcontroller Interface

Digital Output for Arduino 8051 AVR ARM PIC Ras Pi

Bundled Items

1 x Single Channel IR Sensor Module
