TSOP 1738 IR Sensor Tutorial Buy & Learn Remote Control TSOP 1738 IR Sensor Infrared www.mytechnocare.com

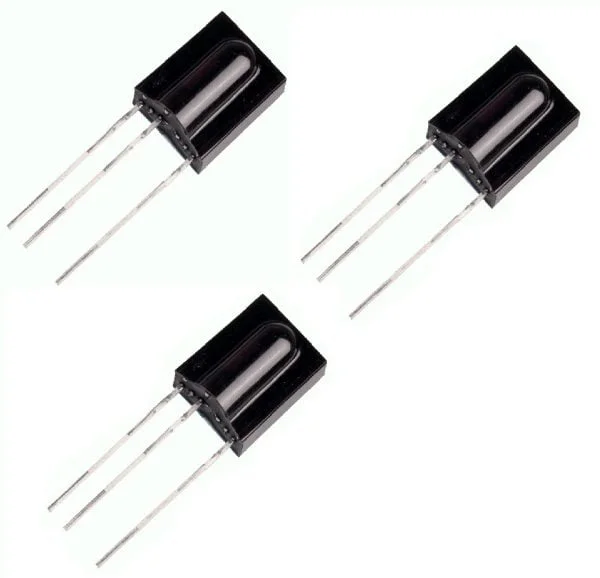

3 x TSOP 1738 IR Sensor for Infrared Remote Control & Wireless Circuit

140.00 98.00

  • It is use  for Remote Control | Industrial Project R&D | Robotics | Wireless Communication | Obstacle Sensor
  • Photo detector & Pre amplifier in one package.
  • Internal filter for PCM frequency.
  • Improved shielding against electrical field disturbance.
  • TTL and CMOS compatibility.
  • Output active low.
  • Low power consumption.
  • High immunity against ambient light.

97 in stock

Description

3 x TSOP1738 IR Sensor | 38 MHz IR Infrared Receiver

Mostly TSOP 1738 IR Sensor Support All Digital Microcontroller such as Arduino, 8051, PIC, AVR, ARM, MSP, COP8, STM, Raspberry Pi etc.

About of TSOP1378 IR Receiver:

First of all TSOP IR Sensor is a miniaturized receiver for infrared remote control systems. Basically PIN diode and pre amplifier are assemble on lead frame and the epoxy package is designe as great IR filter. Generally The demodulated output signal can directly decode by a microprocessor.Even more TSOP sensor is the standard IR remote control receiver series, supporting all major transmission codes.Similarly this sensor can also use for obstacle detection,or as person or object counter.Furthermore it can receive or work on 38MHz Frequency.

Features of  TSOP 1738 IR Sensor:

  • Photo detector and preamplifier in one package.
  • Internal filter for PCM frequency.
  • Improved shielding against electrical field disturbance.
  • TTL and CMOS compatibility.
  • Output active low.
  • Low power consumption.
  • High immunity against ambient light.
  • Continuous data transmission possible (up to 2400 bps)

Specification of  TSOP 1738 IR Sensor Module:

  • Supply Voltage : –0.3 to 6.0 V
  • Supply Current : 5 mA
  • Output Voltage : –0.3 to 6.0 V.
  • Output Current : 5 mA.
  • Junction Temperature : 100 °C
  • Storage Temperature Range : –25 to +85 °C
  • Operating Temperature Range : –25 to +85°C

Package Contents:

3 Quantity of  TSOP1738 IR Sensor

NOTE: Serial Number or Model Number or MNP (TSOP1738) may not be printed on Sensor or Product.

Have any Queries,Please Contact Us

Additional information

Weight45 g
Dimensions25 × 8 × 4 mm
Brand

MY TechnoCare

Supported IC

Arduino,8051,AVR,PIC,ARM,MSP,Raspberr Pi etc

Type

IR Sensor

Functionality

Remote Control, Wireless Communication, Security

Model

1738

Operating Frequancy

38 MHz

Input/Output

Output active low

Power Supply

5 Volt DC

Bundled Items

3 Pcs TSOP 1738

Connectivity

3 Pin Male

Wired or Wireless

Wireless

Utility

Research & Development, Education, Technical DIY

MPN

TSOP1738

UPC

Does Not Apply
