DS1307 with 8051 Development Board buy from india 8051 Project Board+Atmel USB asp ISP AVR Programmer Real Time Clock DS1307 RTC 16x2 LCD MyTechnoCare.com

RTC DS1307 with 8051 Development Board buy with Programmer,16×2 LCD Display JHD162A

1,909.00 1,080.00

DS1307 RTC:

  • IIC I2C RTC DS1307 | 56 Byte NV RAM | Battery Backup | Project R&D
  • Leap year Compensation
  • Accurate Calendar up to year 2100
  • Battery Backup Included
  • 3 Volt Li(Lithium) Coin Battery
  • 1Hz output pin
  • 5 Volt Power Supply
  • Plugs into any breadboard, or You can use wires
  • On board Power indication RED LED
  • Four mounting holes 3.0 mm for easy mounting.
  • Support All Digital Microcontroller such as Arduino, 8051, PIC, AVR, ARM, MSP, COP8, STM, Raspberry Pi etc.

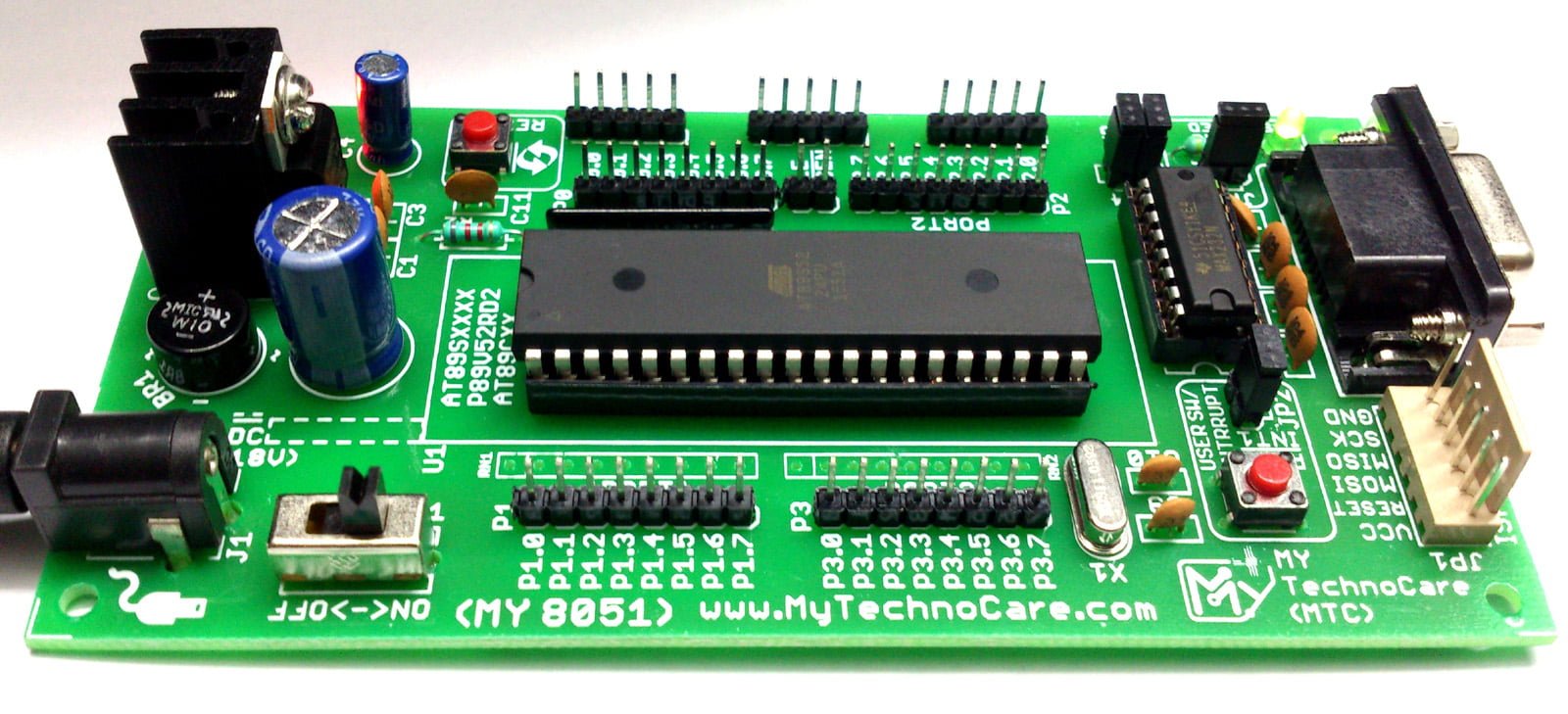

8051 Board:

  • 8051 Development Board Support AT89S51, AT89S52, P89V51RD2 etc. 40-Pin DIP Chip.
  • USB Programmer can be use for both 8051 & AVR IC (2in1)
  • AVR 8051 USB ISP Programmer Supports ATmega 8/328, 16, 32 & many other including 8051 with the same Programmer.See List of Supported IC in Description
  • DIP 40 Pin IC Socket For Easy Insert/Removal of Microcontroller.
  • On-board MAX232 Interface Circuit for Easy Communication with a PC & other RS232 serial devices (GPS modules, GSM Modems, etc)
  • High quality FR-4(1.6 mm) PCB
  • On-Board 5 mm Power Plug-in DC Jack
  • On-Board 5V regulator (LM7805) circuit.
  • On-Board Power ON – OFF switch.
  • On-Board power indication RED LED.
  • On-Board GREEN USER LED connected to P2.0 through jumper JP3.
  • On-Board Input User Switch P3.3 through jumper JP2.
  • On-Board Input External Interrupt Switch (INT1) at P3.3 through jumper JP2.
  • On-board Quartz Crystal 11.05892 MHz
  • Port Extensions for all PORT with Detailed Pin Labeling for Easy Identification of Pin
  • External Pull-Up resistors for Port 0
  • On-board ISP connector for loading HEX file into Microcontroller like AT89S51/52 etc.
  • Vcc bus (5V and 12V) & GND bus provided to Give POWER Supply to the External Peripheral.
  • Four 3mm mounting hole for easy mounting
  • On-board Reset button

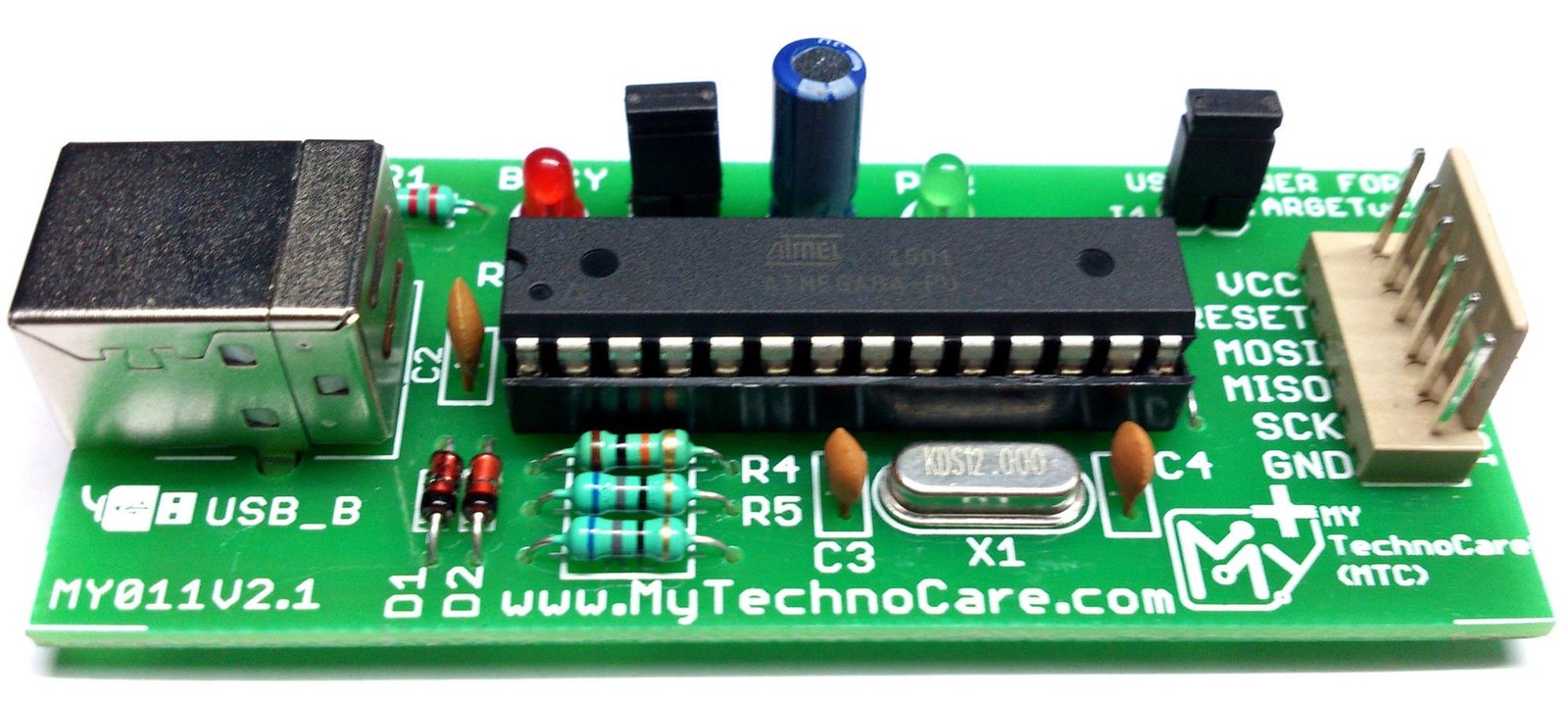

USB Programmer:

  • Allows Read/Write the Microcontroller Flash, EEPROM, Fuse Bit and Lock Bits
  • Support Windows OS (Xp to 10), Mac OS X and Linux
  • SCK Option to Support Targets With Low Clock Speed (<1.5 MHz).
  • 5 KB/sec Maximum Write Speed.
  • Programmer can provide 5V supply for Target Microcontroller, so No Need of Any External Supply.
  • Two Status LEDs  | Green LED : Power Supply Indicator | RED LED  : For Programmer Busy
  • 6 pin Polarized ISP Interface for Easy Connection.

16×2 LCD Yellow/Green Back-light:

  • LCD display module with Yellow/Green Backlight
  • SIZE : 20×4 (2 Rows and 16 Characters Per Row)
  • Can display 2-lines X 16-characters
  • Operate with 5V DC
  • Wide viewing Angle & High Contrast
  • Commonly Used in fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices,Student Project, Collage, copiers.
  • Support All Digital Microcontroller like Arduino,Raspberry Pi,8051,PIC,AVR,ARM,MSP430,STM etc.

38 in stock

Description

DS1307 with 8051 Development Board buy including USB Programmer,Li(Lithium) 3V Coin Battery,16×2 LCD Display,On-Board MAX232 and AT89S52 Microcontroller IC

DS1307 with 8051 Development Board Buy from India to learn How to interface RTC DS1307 with 8051 Project Kit & display real time cloak,alarm on 16×2 LCD.Real Time Clock RTC DS1307 interfacing with 8051 Microcontroller can be executed using I2C or IIC Serial Protocol. it also support All Digital Microcontroller such as Arduino, 8051, PIC, AVR, PIC, ARM, MSP, COP8, STM.8051 Development Board with LCD Project Kit Support AT89S51, AT89S52, P89V51RD2 etc. 40-Pin DIP Chip.USB Programmer can be use for both 8051-AVR IC (2in1).16×2 LCD Display has Yellow Back-light.

Description of 8051 Development Board with LCD & USB Programmer Kit:

If you are learning microcontroller programming and want to make project based on 8051 microcontroller than this DS1307 with 8051 development board buy online with LCD and USB Programmer kit will help you. Furthermore With this board you can develop and prototype with any of 8051(AT89S51, AT89S52, P89V51RD2, AT89Cxx) 40 pin microcontrollers. The board have also status LED. Because of The 1.5 Amp bridge rectifiers ,you can allow this board to be powered with both AC and DC power supply adapters. Even more ,Board having RS232 Serial port for flashing P89V51RD2 (NXP) microcontroller and also use for interfacing GSM module, GPS module , RFID module. There is also 5V, 12V, GND power bus which allow to power external peripherals module.DS1307 with 8051 Development Board Buy at low cost from India also for DIY Hobby.

Feature of 8051 Development Board:

  • DIP 40 Pin Microcontroller IC Socket For Easy Insert and Removal of Microcontroller IC.
  • On-board MAX232 Interface Circuit for Easy Communication with a computer & other RS232 serial devices (GPS modules, GSM Modems, etc)
  • High quality FR-4(1.6 mm) PCB
  • On-Board bridge rectifier so that board can accept both AC and DC Input voltages Power supply
  • Recommended Input Voltage   : 9-12V
  • Min-Max Input Voltage              : 9-18V
  • On-Board 5 mm Power Plug-in DC Jack
  • On-Board 5V regulator (LM7805) circuit.
  • On-Board Power ON – OFF switch.
  • On-Board power indication RED LED.
  • On-Board GREEN USER LED connected to P2.0 through jumper JP3.
  • On-Board Input User Switch P3.3 through jumper JP2.
  • On-Board Input External Interrupt Switch (INT1) at P3.3 through jumper JP2.
  • On-board Quartz Crystal 11.05892 MHz
  • Port Extensions for all PORT with Detailed Pin Labeling for Easy Identification of Pin
  • External Pull-Up resistors for Port 0
  • On-board ISP connector for loading HEX file into Microcontroller like AT89S51/52 etc.
  • Vcc bus (5V and 12V) & GND bus provided to Give POWER Supply to the External Peripheral.
  • Four 3mm mounting hole for easy mounting
  • On-board Reset button.
  • Dimensions: 12cm x 6.4cm

Download 8051 kit document:


16×2 LCD Display Support mostly All Digital Microcontroller such as Arduino, 8051, PIC, AVR, ARM, MSP, COP8, STM, Raspberry Pi etc.

About 16×2 LCD Display:

First of all 16×2 LCD is a basic 16 character by 2 line display Yellow/Green Back light. Utilizes the extremely most common HD44780 parallel interface chipset (datasheet). Even more it has JHD162A Compatible Pin-out Diagram,so Command Interface code is freely available. Finally You will need 7 general I/O pins (If use in 4-bit Mode) to interface to this LCD screen. it also Includes LED back-light.Learn How To Interface 8051 Development Board with LCD 16×2 Display using 8051/AVR USB Programmer for Burn/Flash Hex File into Atmel AT89S52 Microcontroller.Hobbyist can learn interfacing of DS1307 with 8051 Development Board Buy along with 16×2 LCD.

Features of 16×2 Display LCD:

  • Commonly Used in: Student Project, Collage, copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices
  • LCD display module with Green/Yellow Back light
  • SIZE: 16×2 (2 Rows and 16 Characters per Row)
  • Can display 2-lines X 16-characters
  • Operate with 5V DC
  • Wide viewing angle and high contrast
  • Built-in industry standard HD44780 equivalent LCD controller
  • LCM type: Characters

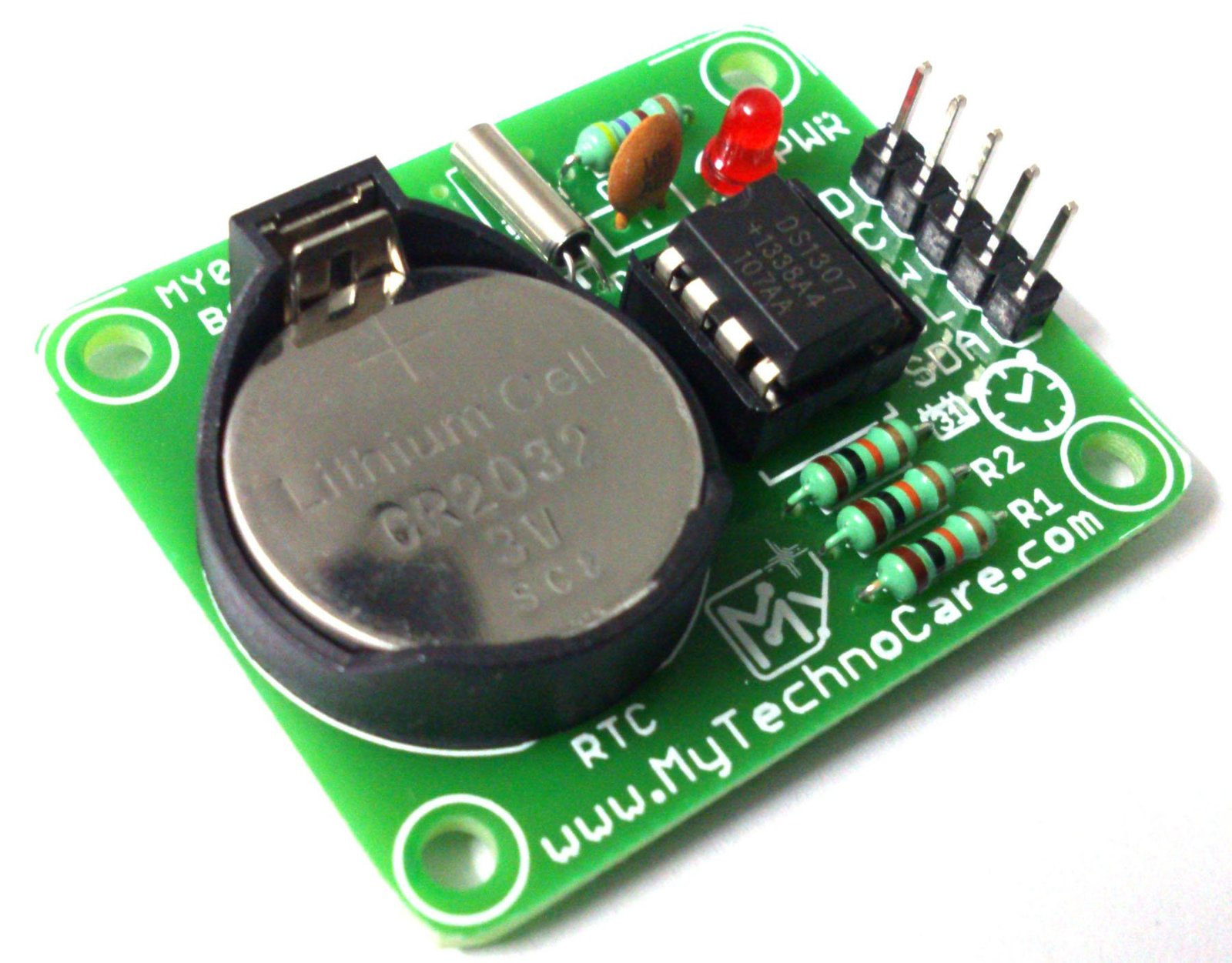

About of DS1307 RTC Module:

This is the DS1307 Real Time Clock (RTC) Module, this small breakout board that uses the most popular DS1307 to keep track of the current year, month, day as well as the current time. The module comes fully assembled and includes a small Lithium coin cell battery that will run the RTC for a minimum of 9 years without an external 5V Power supply. The DS1307 RTC is accessed via I2C Protocol.Finally DS1307 with 8051 Development Board Buy online is easiest way for Electronics engineer to collect necessary component with time efficient way.

Features of Real Time Clock DS1307 Board:

  • Two wire I2C interface
  • (hh : mm : ss) Hour : Minutes : Seconds AM/PM
  • (DD/MM/YYYY) Day Month, Date – Year
  • Leap year Compensation
  • Accurate Calendar up to year 2100
  • Battery Backup Included
  • 3 Volt Li (Lithium) Coin Battery
  • 1Hz output pin
  • 5 Volt Power Supply
  • 56 Bytes of Non-volatile Memory Available to User
  • Plugs into any breadboard, or You can use wires
  • On board power indication RED LED
  • Four Mounting Holes 3.0 mm for Easy Mounting.
  • Dimensions: 43 mm x 34.5 mm

Document of DS1307 Kit:


AVR 8051 USB ISP Programmer Support many Digital Microcntrollers like (89S51, 89S52, AT89SXX, Classic AT90SXX, CAN Series) & (AVR, ATmega, ATtiny) etc.

About AVR 8051 USB ISP Programmer:

USB AVR and AT89Sxx ISP (In System programming) Programmer is low cost USB based programmer.Because of it is ISP ,so there is no need to take out target micro controller from the development Board. This programmer will work with wide variety of Atmel AVR and also AT89Sxxxx microcontroller. This is quite compact, but the design is really elegant. Even more The USB interface is achieved by using an atmega8 processor and the rest is done in firmware.USB Programmer is use to load Hex file for Example,suppose interfacing code Hex file of DS1307 with 8051 Development Board Buy with 16×2 lcd and ISP Programmer.

Features of  Atmel AVR 8051 ISP  Microcontroller Programmer:

  • Allows You to Read or Write the Microcontroller Flash, EEPROM, Fuse Bit and Lock Bits.
  • Support Windows OS (Xp to 10), Mac OS X and Linux.
  • ATmega8 with USBasp Firmware Pre-loaded.
  • Support ATmega 8/328, 16, 32 and many other including 8051 with the same Programmer.
  • SCK Option to Support Targets With Low Clock Speed (<1.5 MHz).
  • 5 KB/sec Maximum Write Speed.
  • Programmer can Provide 5V supply for Target Microcontroller, so No Need of Any External Supply.
  • Two Status LEDs  | Green LED : Power Supply Indicator | RED LED  : This is ON While Programmer is Busy
  • 6 pin Polarized ISP Interface for Easy Connection.

Supported Software Download For 8051 & AVR USB Programmer:

  • Progisp  – Windows GUI application for AVR and AT89Sxx. (2)
  • AVRdude   – Version 5.2 or later. AVRdude is available for many platforms. (1)
  • Khazama AVR Programmer  – All Windows OS (Xp to 10) GUI application for USBasp & avrdude. (1)

Note:

  1. Khazama AVR Programmer and AVRdude do not support AT89SXX.
  2. Progisp support almost both AVR and AT89SXX controller.

Download Link:

  • (All in 1 RAR file) For How to install driver | Circuit Diagram | Connection | Program 8051 AVR Microcontroller | Driver For    All Windows OS 64-bit & 32-bit

  Download (All in 1 RAR File)

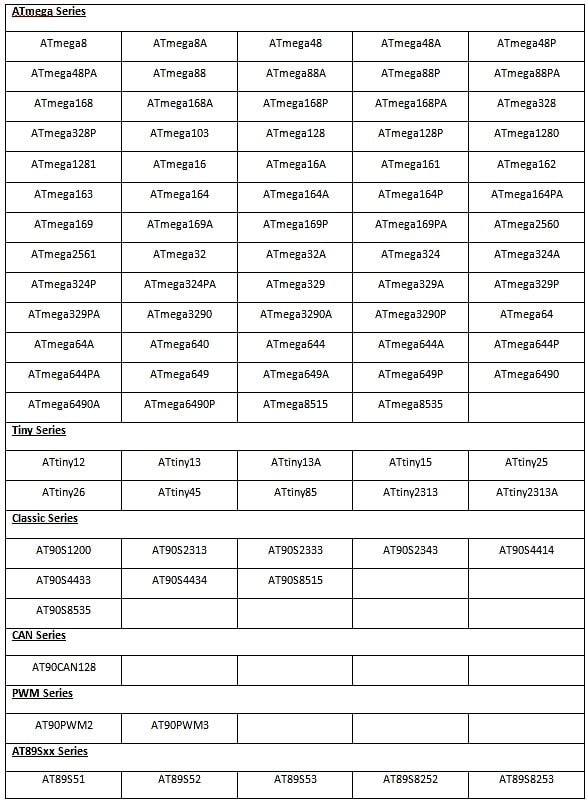

Supported Microcontroller List:

ATMEL ATmega Series:

  • ATmega8              ATmega8A           ATmega48        ATmega48A        ATmega48P       ATmega48PA
  • ATmega88            ATmega88A        ATmega88P      ATmega88PA      ATmega168       ATmega168A
  • ATmega168P       ATmega168PA    ATmega328      ATmega328P      ATmega103       ATmega128
  • ATmega128P       ATmega1280       ATmega1281   ATmega16           ATmega16A       ATmega161
  • ATmega162          ATmega163        ATmega164      ATmega164A      ATmega164P    ATmega164PA
  • ATmega169          ATmega169A      ATmega169P   ATmega169PA    ATmega2560     ATmega2561
  • ATmega32            ATmega32A        ATmega324      ATmega324A      ATmega324P    ATmega324PA
  • ATmega329          ATmega329A     ATmega329P    ATmega329PA    ATmega3290    ATmega3290A
  • ATmega3290P     ATmega64           ATmega64A      ATmega640        ATmega644       ATmega644A
  • ATmega644P       ATmega644PA    ATmega649      ATmega649A      ATmega649P     ATmega6490
  • ATmega6490A    ATmega6490P    ATmega8515    ATmega8535

Tiny Series:

  • ATtiny12         ATtiny13         ATtiny13A     ATtiny15     ATtiny25     ATtiny26    ATtiny45    ATtiny85
  • ATtiny2313    ATtiny2313A

Classic Series:

  • AT90S1200     AT90S2313    AT90S2333    AT90S2343    AT90S4414    AT90S4433    AT90S4434   AT90S8515   AT90S8535

CAN Series:

  • AT90CAN128

PWM Series:

  • AT90PWM2    AT90PWM3

AT89Sxx Series:

  • AT89S51 AT89S52 AT89S53 AT89S8252 AT89S8253

Package Contents:

  • 1 x USB ISP Programmer
  • 1 x 6-pin Polarized Cable
  • 1 x USB A to B Cable
  • 1 x 8051 Development Board
  • 1 x AT89S52 On-Board Microcontroller IC
  • 1 x MAX232 On-Board RS232 driver IC
  • 1 x LCD 16×2 with Yellow/Green Backlight
  • 1 x RTC Module with DS1307
  • 1 x Li (Lithium) Coin Battery 3 Volt

NOTE:

  • POWER SUPPLY Adapter IS NOT Included WITH THIS ITEM(DS1307 with 8051 Development Board buy online with USB Programmer Kit).

Have any queries,Please Contact Us

Additional information

Brand

MY TechnoCare

Condition

New: A brand-new, unused and undamaged item.

Type

Development Board+RTC +LCD+USB Programmer KIT

Supported IC

40Pin 8051 IC(Board), 8051&AVR(Programmer), DS1307

Bundled Items

8051 Board,Programmer,6Pin Cable,USB Cable,LCD,RTC

MPN

MY010V2.1 & MY011V2.1 & MY012V2.0 & 162A

Power Supply

9to12 Volt AC/DC (Board), 5V DC(Programmer,LCD,RTC)

Image Aspect Ratio

5×7 Pixel Per Character (For 16×2 LCD)

Resolution

16×2 (2 Rows and 16 Characters Per Row) (For LCD)

Memory

For AT89S52 (8K bytes of Flash, 256 bytes RAM)

Processor Speed

For 89S52 (Up to 33 MHz) (On Board 11.0592MHz)

Processor Socket

40-Pin DIP IC Socket (OnBoard)

Input/Output

4xGeneral Purpose IO PORT,1 x Serial RS232 DB9 Port

Extra User Interrupt

1 x On Board External Interrupt Switch (INT1)

Communication Port

1 x Serial DB9 Connector (BOARD), USB(Programmer)

Functionality

Industrial or Project Development & Programming

Connectivity

Serial RS232 (Board ), USB (Programmer)

Brightness

Adjustable Resistor Controlled (For 16×2 LCD)

Utility

Research & Development, Education, Technical DIY

PCB Quality

FR4 Glass epoxy, High Quality

Weight

<200 Gram

Installation

Four Mounting hole 3.0 mm for Easy Mounting(Board)

Display Type

LED Indicator(Board) & LCD

Extra User Peripheral(OnBoard)

1 x User LED Green (P2.0 Pin), 1xUser Switch P3.3

UPC

Does Not Apply
