AVR 8051 USB ISP Programmer For Atmel AVR & 8051 Microcontroller

466.00

  • For Industrial Product Development | R&D | Student Project
  • AVR 8051 USB ISP Programmer Supports ATmega 8/328, 16, 32 & many others including 8051 with the same Programmer
  • Allows Read or Write the Microcontroller Flash, EEPROM, Fuse Bit, and Lock Bits
  • Support Windows OS (XP to 10), Mac OS X, and Linux
  • ATmega8 with USBasp Firmware Pre-loaded
  • SCK Option to Support Targets With Low Clock Speed (<1.5 MHz).
  • 5 KB/sec Maximum Write Speed.
  • The programmer can provide a 5V supply for Target Microcontroller, so No Need for Any External Supply.

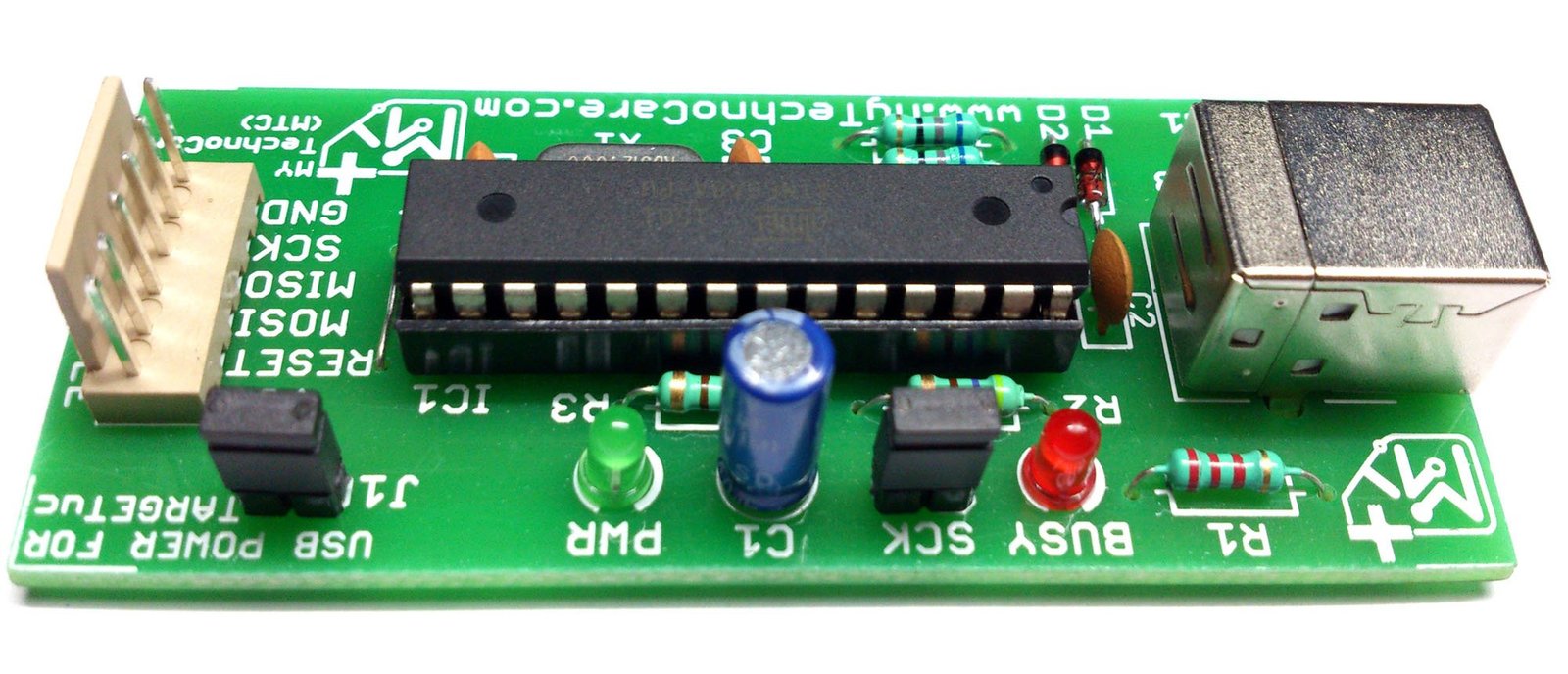

  • Two Status LEDs  | Green LED: Power Supply Indicator | RED LED: For Programmer Busy
  • 6 pin Polarized ISP Interface for Easy Connection.

Out of stock

Description

AVR 8051 USB ISP Programmer For Atmel AVR & 8051 Microcontroller With Free USB Cable

AVR 8051 USB ISP Programmer Support many Digital Microcontrollers like (89S51, 89S52, AT89SXX, Classic AT90SXX, CAN Series) & (AVR, ATmega, ATtiny), etc.

About AVR 8051 USB ISP Programmer:

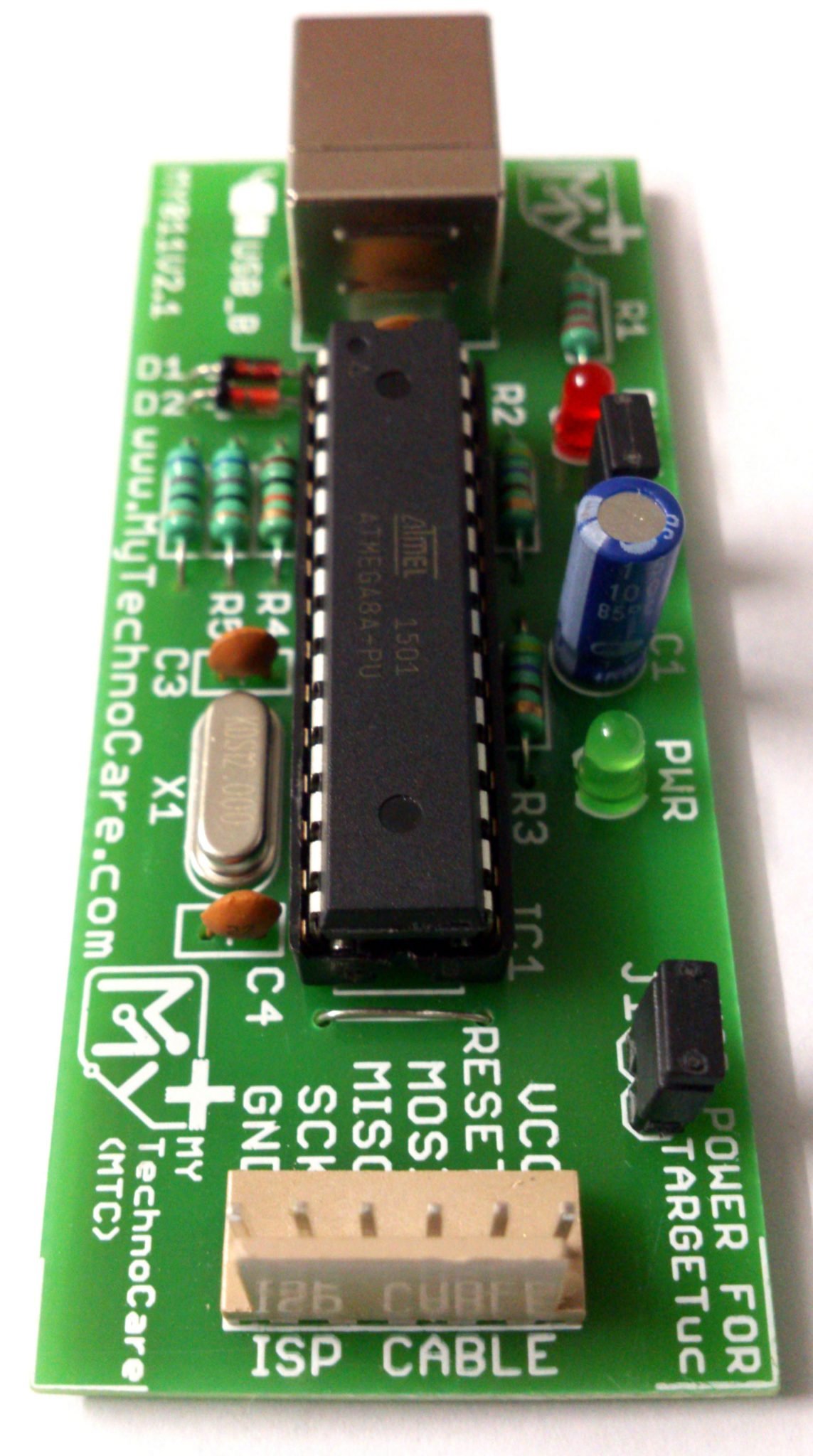

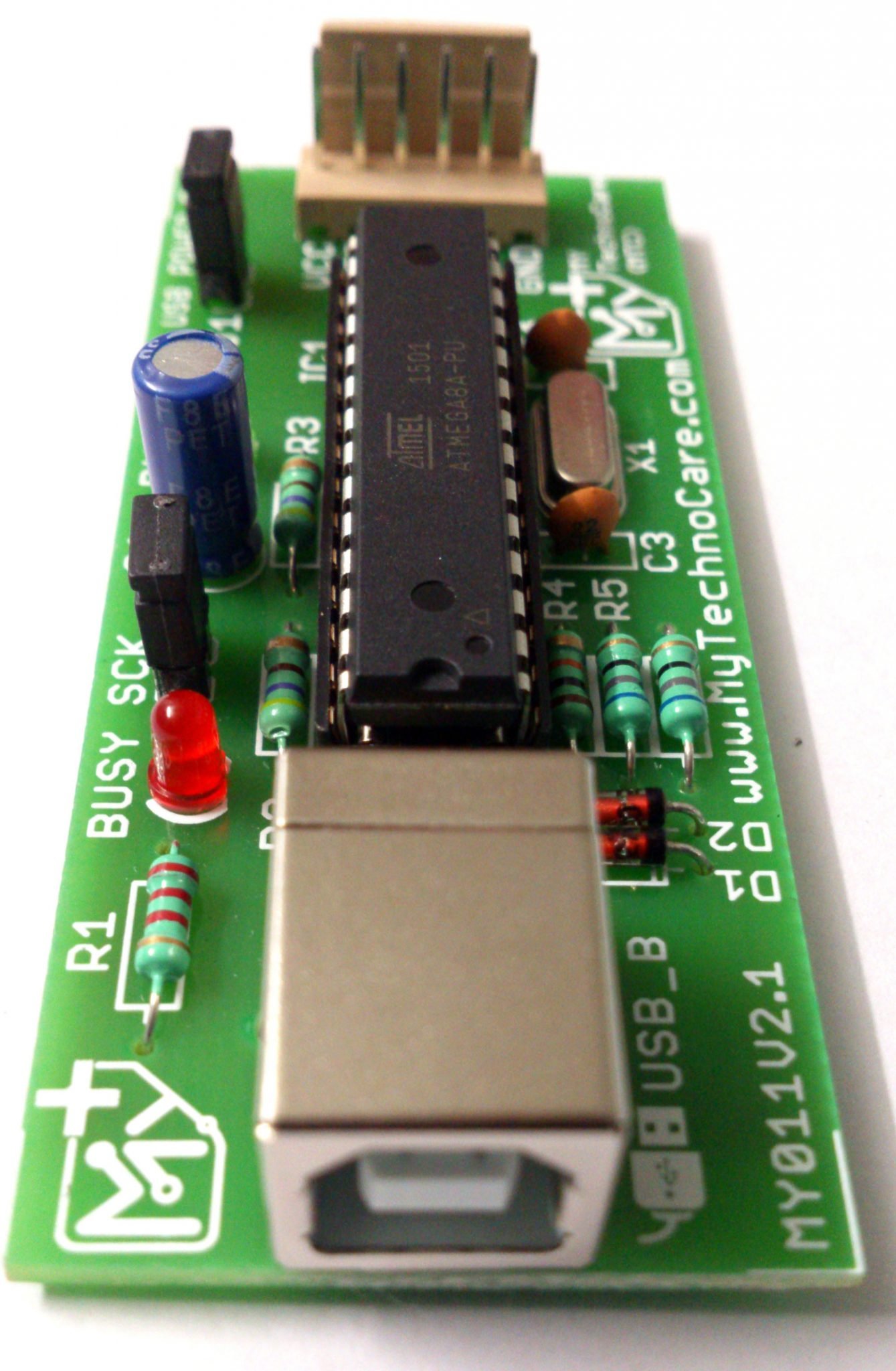

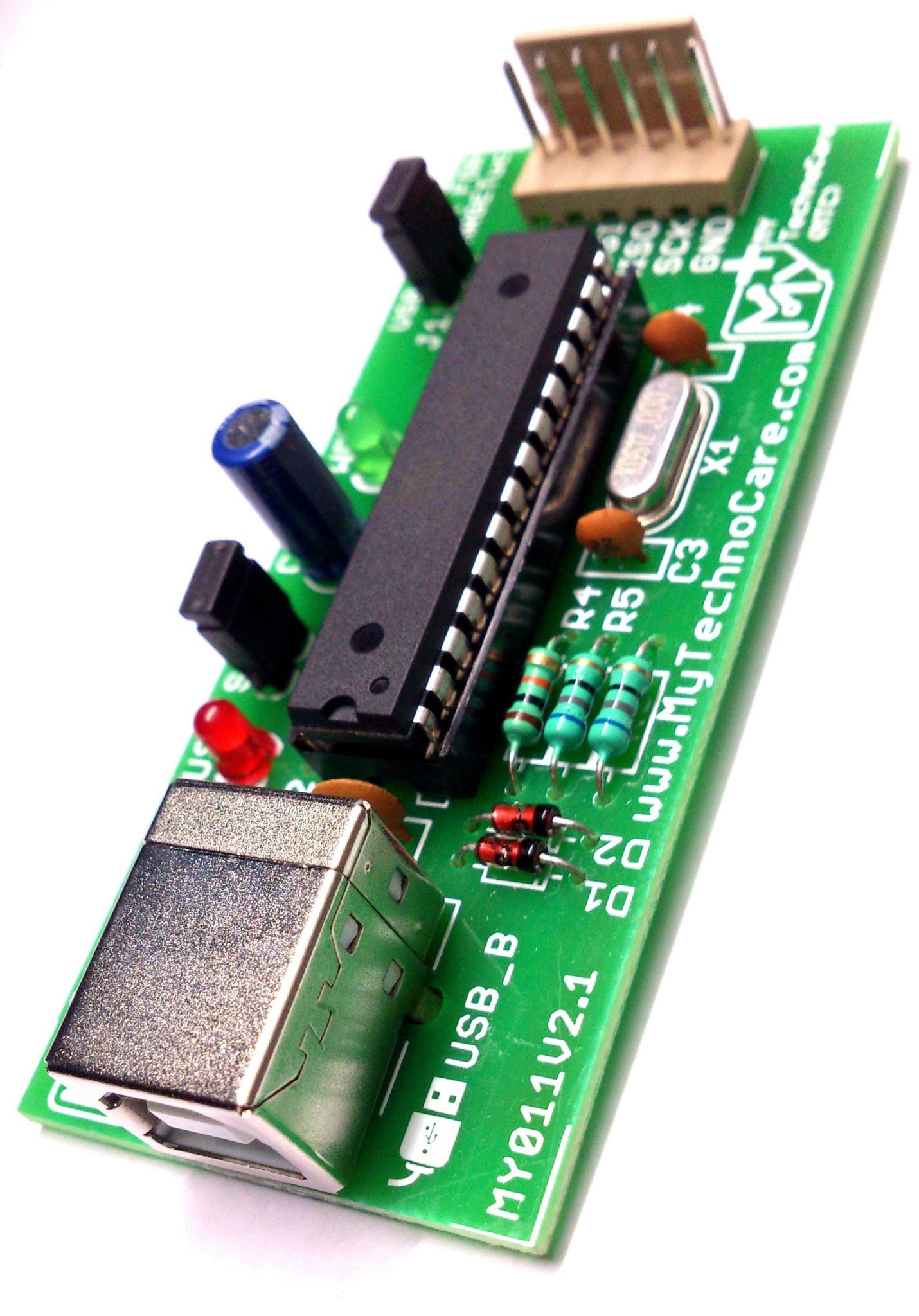

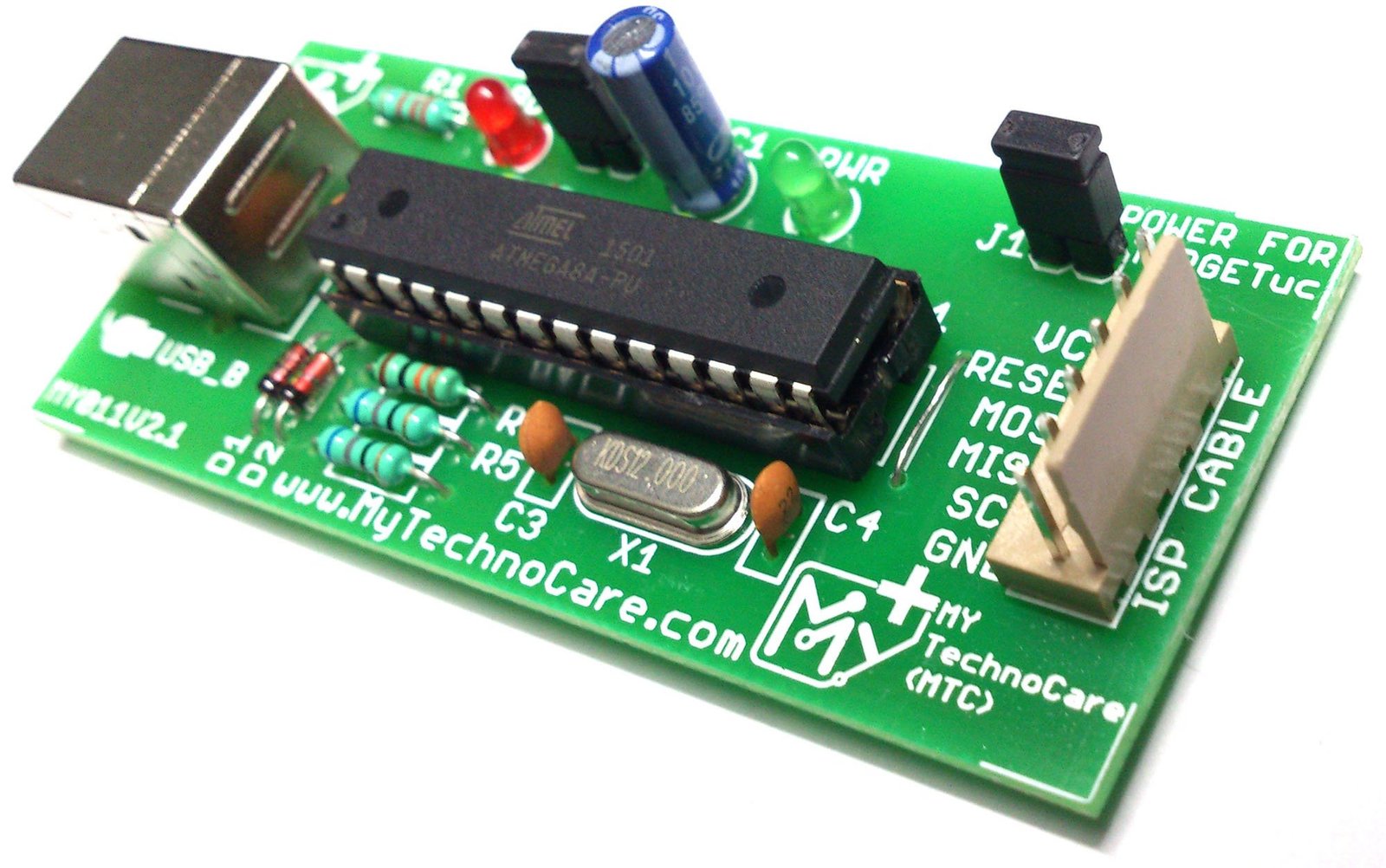

First of all USB AVR and AT89Sxx ISP (In-System Programming) Programmer is a low-cost USB-based programmer. There is no need to take out the target micro controller from the development Board. This programmer will work with a wide variety of Atmel AVR and AT89Sxxxx microcontroller. This is quite compact, but the design is really elegant. The USB interface is achieved by using an atmega8 processor and the rest is done in firmware.

Features of  Atmel AVR 8051 ISP  Microcontroller Programmer:

  • Allows You to Read or Write the Microcontroller Flash, EEPROM, Fuse Bit, and Lock Bits.
  • Support Windows OS (XP to 10), Mac OS X, and Linux.
  • ATmega8 with USBasp Firmware Pre-loaded.
  • Support ATmega 8/328, 16, 32, and many others including 8051 with the same Programmer.
  • SCK Option to Support Targets With Low Clock Speed (<1.5 MHz).
  • 5 KB/sec Maximum Write Speed.
  • The programmer can Provide a 5V supply for Target Microcontroller, so No Need for Any External Supply.
  • Two Status LEDs  | Green LED : Power Supply Indicator | RED LED  : This is ON While Programmer is Busy
  • 6 pin Polarized ISP Interface for Easy Connection.

Supported Software Download For 8051 & AVR USB Programmer:

  • Progisp                                           – Windows GUI application for AVR and AT89Sxx. (2)
  • AVRdude                                        – Version 5.2 or later. AVRdude is available for many platforms. (1)
  • Khazama AVR Programmer  – All Windows OS (Xp to 10) GUI applications for USBasp & avrdude. (1)

Note:

  1. Khazama AVR Programmer and AVRdude do not support AT89SXX.
  2. Progisp support almost both AVR and AT89SXX controller.

Download Link:

  • (All in 1 RAR file) For How to install driver | Circuit Diagram | Connection | Program 8051 AVR Microcontroller | Driver For    All Windows OS 64-bit & 32-bit

               Download (All in 1 RAR File)

Supported Microcontroller List:

ATMEL ATmega Series:

  • ATmega8              ATmega8A           ATmega48        ATmega48A        ATmega48P       ATmega48PA
  • ATmega88            ATmega88A        ATmega88P      ATmega88PA      ATmega168       ATmega168A
  • ATmega168P       ATmega168PA    ATmega328      ATmega328P      ATmega103       ATmega128
  • ATmega128P       ATmega1280       ATmega1281   ATmega16           ATmega16A       ATmega161
  • ATmega162          ATmega163        ATmega164      ATmega164A      ATmega164P    ATmega164PA
  • ATmega169          ATmega169A      ATmega169P   ATmega169PA    ATmega2560     ATmega2561
  • ATmega32            ATmega32A        ATmega324      ATmega324A      ATmega324P    ATmega324PA
  • ATmega329          ATmega329A     ATmega329P    ATmega329PA    ATmega3290    ATmega3290A
  • ATmega3290P     ATmega64           ATmega64A      ATmega640        ATmega644       ATmega644A
  • ATmega644P       ATmega644PA    ATmega649      ATmega649A      ATmega649P     ATmega6490
  • ATmega6490A    ATmega6490P    ATmega8515    ATmega8535

Tiny Series:

  • ATtiny12         ATtiny13         ATtiny13A     ATtiny15     ATtiny25     ATtiny26    ATtiny45    ATtiny85
  • ATtiny2313    ATtiny2313A

Classic Series:

  • AT90S1200     AT90S2313    AT90S2333    AT90S2343    AT90S4414    AT90S4433    AT90S4434   AT90S8515   AT90S8535

CAN Series:

  • AT90CAN128

PWM Series:

  • AT90PWM2    AT90PWM3

AT89Sxx Series:

  • AT89S51 AT89S52 AT89S53 AT89S8252 AT89S8253

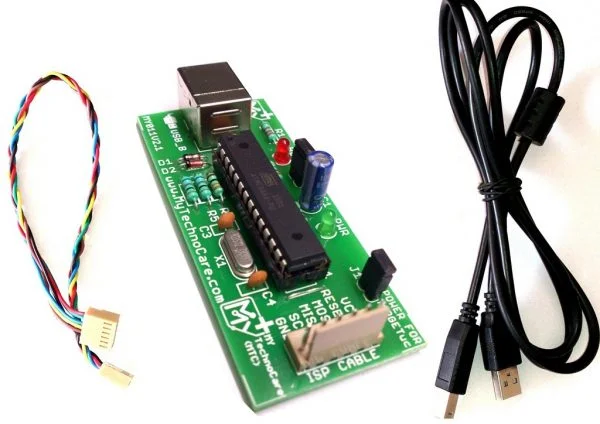

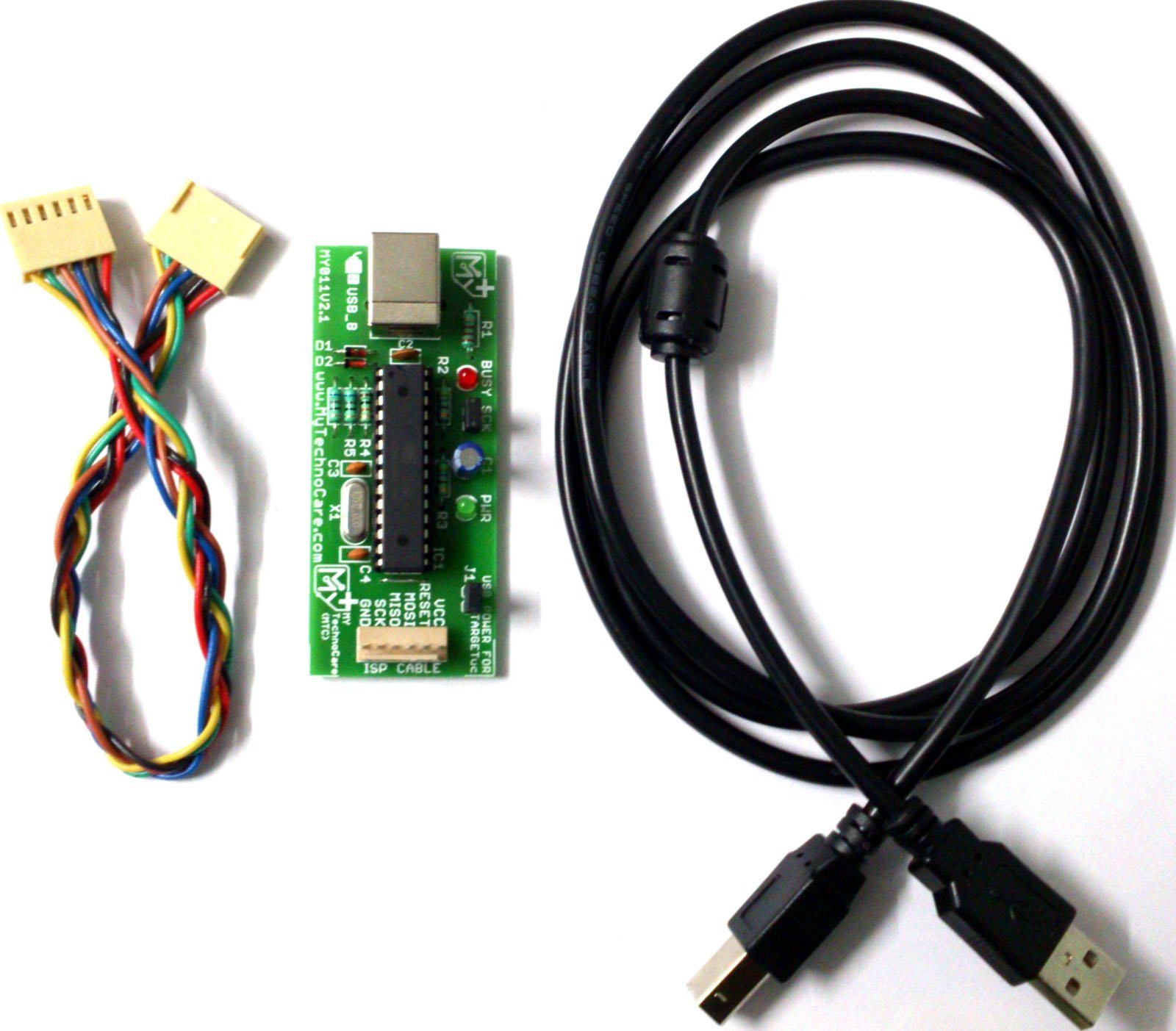

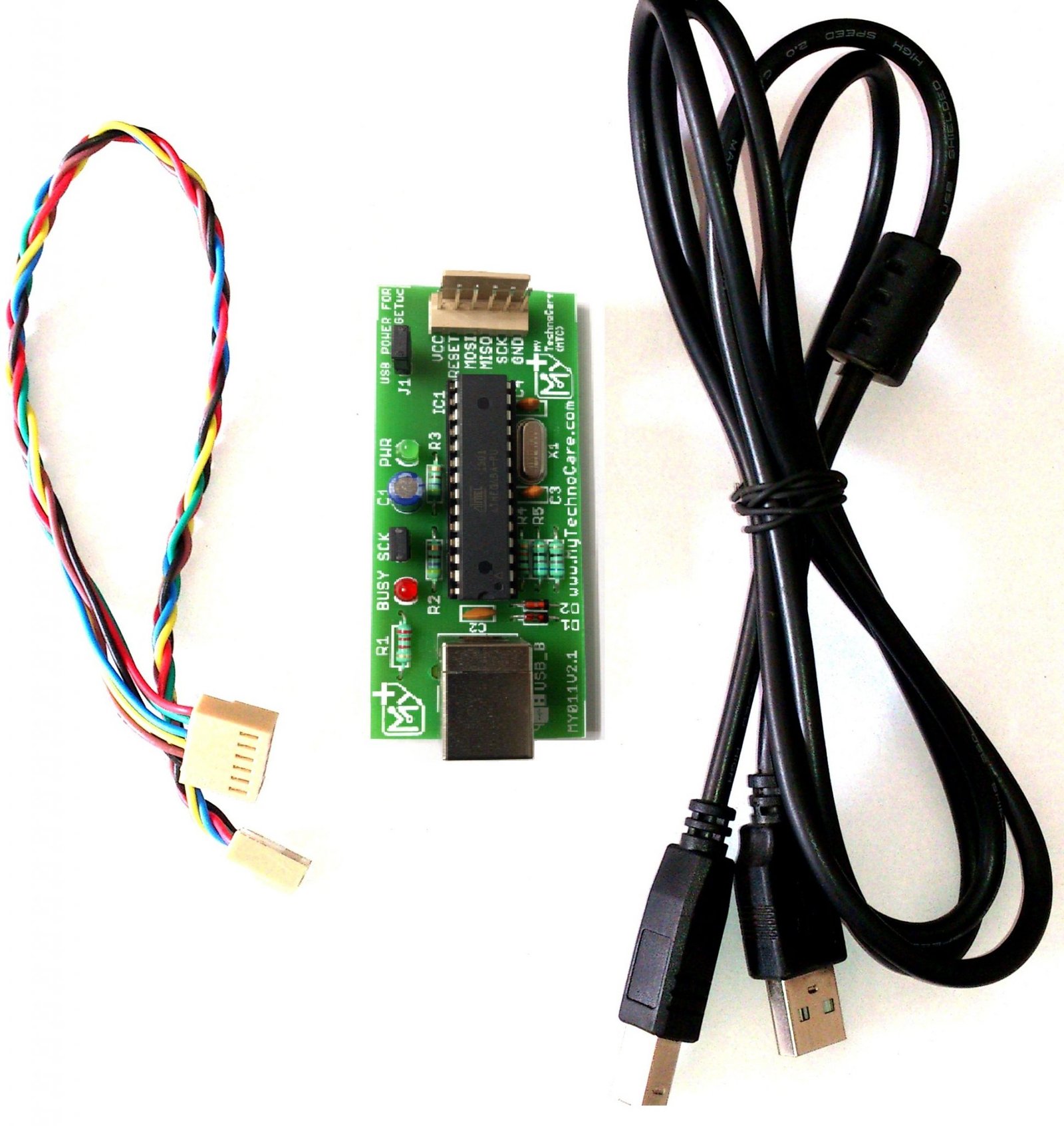

Package Contents:

1 x USB ISP Programmer

1 x 6 pin Polarized Cable

1 x Free USB A to B Cable

Have any Queries, Please Contact Us




Additional information

Weight98 g
Brand

MY TechnoCare

Model

MY011V2.1

PCB Quality

FR4 Glass epoxy, High Quality

Type

Microcontroller IC Programmer

Utility

Research & Development, Education, Technical DIY

Supported IC

8051 & AVR Series Microcontroller (See List of ICs in Description)

Power Supply

5 Volt DC

Connectivity

USB & 6 Pin Polarized Connectore

Communication Port

USB and ISP

Display Technology

LED Indicator

Wired or Wireless

Wired

MPN

MY011V2.1

UPC

Does Not Apply
