16x2 LCD interfacing with 8051 Development Board ZIF Scoket + USB Microcontroller Programmer AT89S52 IC India MyTechnoCare.com

16×2 LCD with 8051 Development Board ZIF Scoket + USB Microcontroller Programmer

1,668.00 922.00

For Industrial Research Design | Low Cost | Project Development DIY

8051 Board:

  • DIP 40 Pin ZIF (Zero Insertion Force) Socket. For Easy Insert/Remove of IC
  • ZIF Socket Protect Your Microcontroller From Damage
  • 8051 Development Board Support AT89S51, AT89S52, P89V51RD2 etc. 40-Pin DIP Chip.
  • USB Programmer can be use for both 8051 & AVR IC (2in1)
  • AVR 8051 USB ISP Programmer Supports ATmega 8/328, 16, 32 & many other including 8051 with the same Programmer.See List of Supported IC in Description
  • On-board MAX232 Interface Circuit for Easy Communication with a PC & other RS232 serial devices (GPS modules, GSM Modems, etc)
  • High quality FR-4(1.6 mm) PCB
  • On-Board 5 mm Power Plug-in DC Jack
  • On-Board 5V regulator (LM7805) circuit.
  • On-Board Power ON – OFF switch.
  • On-Board power indication RED LED.
  • On-Board GREEN USER LED connected to P2.0 through jumper JP3.
  • On-Board Input User Switch P3.3 through jumper JP2.
  • On-Board Input External Interrupt Switch (INT1) at P3.3 through jumper JP2.
  • On-board Quartz Crystal 11.05892 MHz
  • Port Extensions for all PORT with Detailed Pin Labeling for Easy Identification of Pin
  • External Pull-Up resistors for Port 0
  • On-board ISP connector for loading HEX file into Microcontroller like AT89S51/52 etc.
  • Vcc bus (5V and 12V) & GND bus provided to Give POWER Supply to the External Peripheral.
  • Four 3mm mounting hole for easy mounting
  • On-board Reset button

USB Programmer:

  • Allows Read/Write the Microcontroller Flash, EEPROM, Fuse Bit and Lock Bits
  • Support Windows OS (Xp to 10), Mac OS X and Linux
  • SCK Option to Support Targets With Low Clock Speed (<1.5 MHz).
  • 5 KB/sec Maximum Write Speed.
  • Programmer can provide 5V supply for Target Microcontroller, so No Need of Any External Supply.
  • Two Status LEDs  | Green LED : Power Supply Indicator | RED LED : For Programmer Busy
  • 6 pin Polarized ISP Interface for Easy Connection.

16×2 LCD Yellow/Green Back-light:

  • LCD display module with Yellow/Green Backlight
  • SIZE : 20×4 (2 Rows and 16 Characters Per Row)
  • Can display 2-lines X 16-characters
  • Operate with 5V DC
  • Wide viewing Angle & High Contrast
  • Commonly Used in fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices,Student Project, Collage, copiers.
  • Support All Digital Microcontroller like Arduino,Raspberry Pi,8051,PIC,AVR,ARM,MSP430,STM etc.

30 in stock

Description

Learn 16×2 LCD Interfacing with 8051 Development Board with USB Programmer, ZIF Socket & On-Board MAX232,AT89S52 Microcontroller IC

Learn Lcd interfacing with 8051 development Board.8051 Project Kit Support AT89S51, AT89S52, P89V51RD2 etc. 40-Pin DIP Chip.USB asp Programmer can be use for both 8051-AVR IC (2in1) | 16 x 2 LCD Display has Yellow/Green Backlight

Description of 8051 Microcontroller Board:

If you are learning LCD Interfacing with microcontroller programming and want to make project based on 8051 microcontroller than this board will help you.Using 16×2 LCD Interfacing with 8051 Development Board you can develop and prototype with any of 8051(AT89S51, AT89S52, P89V51RD2, AT89Cxx) 40 pin microcontrollers. Beacuse of The board have 1.5 Amp bridge rectifiers allow this board to be powered with both AC and DC power supply adapters. Board having RS232 Serial port for flashing P89V51RD2 (NXP) microcontroller and also it is use for interfacing GSM module, GPS module , RFID module. Furthermore,There is 5V, 12V, GND power bus which allow to power external peripherals module.

Features of 8051 Kit with ZIF Socket:

  • DIP 40 Pin Microcontroller ZIF (Zero Insertion Force) Socket. For Easy Insert and Remove of IC
  • ZIF Socket Protect Your Microcontroller From Damage
  • On-board MAX232 Interface Circuit for Easy Communication with a computer & other RS232 serial devices (GPS modules, GSM Modems, etc)
  • High quality FR-4(1.6 mm) PCB
  • On-Board bridge rectifier so that board can accept both AC and DC Input voltages Power supply
  • Recommended Input Voltage   : 9-12V
  • Min-Max Input Voltage              : 9-18V
  • On-Board 5 mm Power Plug-in DC Jack
  • On-Board 5V regulator (LM7805) circuit.
  • On-Board Power ON – OFF switch.
  • On-Board power indication RED LED.
  • On-Board GREEN USER LED connected to P2.0 through jumper JP3.
  • On-Board Input User Switch P3.3 through jumper JP2.
  • On-Board Input External Interrupt Switch (INT1) at P3.3 through jumper JP2.
  • On-board Quartz Crystal 11.05892 MHz
  • Port Extensions for all PORT with Detailed Pin Labeling for Easy Identification of Pin
  • External Pull-Up resistors for Port 0
  • On-board ISP connector for loading HEX file into Microcontroller like AT89S51/52 etc.
  • Vcc bus (5V and 12V) & GND bus provided to Give POWER Supply to the External Peripheral.
  • Four 3mm mounting hole for Easy Mounting
  • On-board Reset button.
  • Dimensions: 12cm x 6.4cm

Download 8051 kit document:


16×2 LCD Display Support mostly All Digital Microcontroller such as Arduino, 8051, PIC, AVR, ARM, MSP, COP8, STM, Raspberry Pi etc.Here it is Provided with on-board Atmel AT89S52 Microcontroller Project Board. So User can learn 16×2 LCD interfacing with 8051 Development Board.

About 16×2 LCD Display:

First of all 16×2 LCD is a basic 16 character by 2 line display Yellow/Green Back light. Utilizes the extremely most common HD44780 parallel interface chipset (datasheet). Even more it has JHD162A Compatible Pin-out Diagram,so Command Interface code is freely available. Finally You will need 7 general I/O pins (If use in 4-bit Mode) to interface to this LCD screen. it also Includes LED back-light.Learn How To Interface 8051 Development Board with LCD 16×2 Display using 8051/AVR USB Programmer for Burn/Flash Hex File into Atmel AT89S52 Microcontroller.By 16×2 LCD interfacing with 8051 Development Board ,user can display Alphanumeric character.

Features of 16×2 Display LCD:

  • Commonly Used in: Student Project, Collage, copiers, fax machines, laser printers, industrial test equipment, networking equipment such as routers and storage devices
  • LCD display module with Green/Yellow Backlight
  • SIZE: 16×2 (2 Rows and 16 Characters per Row)
  • Can display 2-lines X 16-characters
  • Operate with 5V DC
  • Wide viewing angle and high contrast
  • Built-in industry standard HD44780 equivalent LCD controller
  • LCM type: Characters

AVR 8051 USB ISP Programmer Support many Digital Microcntrollers like (89S51, 89S52, AT89SXX, Classic AT90SXX, CAN Series) & (AVR, ATmega, ATtiny) etc.

About AVR 8051 USB ISP Programmer:

USB AVR and AT89Sxx ISP (In System programming) Programmer is low cost USB based programmer.Because of it is ISP ,so there is no need to take out target micro controller from the development Board. This programmer will work with wide variety of Atmel AVR and also AT89Sxxxx microcontroller. This is quite compact, but the design is really elegant. Even more The USB interface is achieved by using an atmega8 processor and the rest is done in firmware.After Writing code for 16×2 LCD interfacing with 8051 Development Board you use this Programmer to Flash Hex File into the Atmel AT89S52 Microcontroller IC

Features of  Atmel AVR 8051 ISP  Microcontroller Programmer:

  • Allows You to Read or Write the Microcontroller Flash, EEPROM, Fuse Bit and Lock Bits.
  • Support Windows OS (Xp to 10), Mac OS X and Linux.
  • ATmega8 with USBasp Firmware Pre-loaded.
  • Support ATmega 8/328, 16, 32 and many other including 8051 with the same Programmer.
  • SCK Option to Support Targets With Low Clock Speed (<1.5 MHz).
  • 5 KB/sec Maximum Write Speed.
  • Programmer can Provide 5V supply for Target Microcontroller, so No Need of Any External Supply.
  • Two Status LEDs  | Green LED : Power Supply Indicator | RED LED : This is ON While Programmer is Busy
  • 6 pin Polarized ISP Interface for Easy Connection.

Supported Software Download For 8051 & AVR USB Programmer:

  • Progisp  – Windows GUI application for AVR and AT89Sxx. (2)
  • AVRdude   – Version 5.2 or later. AVRdude is available for many platforms. (1)
  • Khazama AVR Programmer  – All Windows OS (Xp to 10) GUI application for USBasp & avrdude. (1)

Note:

  1. Khazama AVR Programmer and AVRdude do not support AT89SXX.
  2. Progisp support almost both AVR and AT89SXX controller.

Download Link:

  • (All in 1 RAR file) For How to install driver | Circuit Diagram | Connection | Program 8051 AVR Microcontroller | Driver For    All Windows OS 64-bit & 32-bit

  Download (All in 1 RAR File)

Supported Microcontroller List:

ATMEL ATmega Series:

  • ATmega8              ATmega8A           ATmega48        ATmega48A        ATmega48P       ATmega48PA
  • ATmega88            ATmega88A        ATmega88P      ATmega88PA      ATmega168       ATmega168A
  • ATmega168P       ATmega168PA    ATmega328      ATmega328P      ATmega103       ATmega128
  • ATmega128P       ATmega1280       ATmega1281   ATmega16           ATmega16A       ATmega161
  • ATmega162          ATmega163        ATmega164      ATmega164A      ATmega164P    ATmega164PA
  • ATmega169          ATmega169A      ATmega169P   ATmega169PA    ATmega2560     ATmega2561
  • ATmega32            ATmega32A        ATmega324      ATmega324A      ATmega324P    ATmega324PA
  • ATmega329          ATmega329A     ATmega329P    ATmega329PA    ATmega3290    ATmega3290A
  • ATmega3290P     ATmega64           ATmega64A      ATmega640        ATmega644       ATmega644A
  • ATmega644P       ATmega644PA    ATmega649      ATmega649A      ATmega649P     ATmega6490
  • ATmega6490A    ATmega6490P    ATmega8515    ATmega8535

Tiny Series:

  • ATtiny12         ATtiny13         ATtiny13A     ATtiny15     ATtiny25     ATtiny26    ATtiny45    ATtiny85
  • ATtiny2313    ATtiny2313A

Classic Series:

  • AT90S1200     AT90S2313    AT90S2333    AT90S2343    AT90S4414    AT90S4433    AT90S4434   AT90S8515   AT90S8535

CAN Series:

  • AT90CAN128

PWM Series:

  • AT90PWM2    AT90PWM3

AT89Sxx Series:

  • AT89S51 AT89S52 AT89S53 AT89S8252 AT89S8253

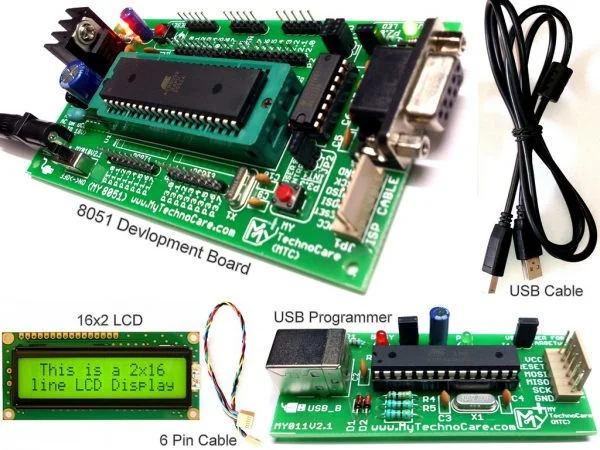

Package Contents:

  • 1 x USB ISP Programmer
  • 1 x 6-pin Polarized Cable
  • 1 x USB A to B Cable
  • 1 x 8051 Development Board with ZIF Scoket
  • 1 x AT89S52 On-Board Microcontroller IC
  • 1 x MAX232 On-Board RS232 driver IC
  • 1 x LCD 16×2 with Yellow/Green Backlight

NOTE:

  • POWER SUPPLY Adapter IS NOT Included WITH THIS ITEM(8051 Development Board with LCD 16×2 Display & USB Programmer Kit).

Have any queries,Please Contact Us

Additional information

Brand

MY TechnoCare, Means Your Care

Bundled Items

8051 Board ZIF,Programmer,6Pin Cable,USB Cable,16x2LCD

Type

Development Board With ZIF+LCD+USB Programmer KIT

Model

MY010V2.1(ZIF) & MY011V2.1

Image Brightness

Adjustable Resistor Controlled (For 16×2 LCD)

Power Supply

9 to 12 Volt AC/DC (Board), 5V DC(Programmer,LCD)

Display Technology

LED Indicator(Board) & LCD

Memory

For AT89S52 (8K bytes of Flash, 256 bytes RAM)

Image Aspect Ratio

5×7 Pixel Per Character (For 16×2 LCD)

Processor Speed

For 89S52 (Up to 33 MHz) (On Board 11.0592MHz)

Resolution

16×2 (2 Rows and 16 Characters Per Row) (For LCD)

Processor Socket

ZIF (Zero Insertion Force) Socket (OnBoard)

Input/Output

4xGeneral Purpose IO PORT,1 x Serial RS232 DB9 Port

Functionality

Industrial or Project Development & Programming

Extra User Interrupt

1 x On Board External Interrupt Switch (INT1)

Communication Port

1 x Serial DB9 Connector (BOARD), USB(Programmer)

Connectivity

Serial RS232 (Board ), USB (Programmer)

PCB Quality

FR4 Glass epoxy, High Quality

Wired or Wireless

Wired

Installation

Four Mounting hole 3.0 mm for Easy Mounting(Board)

Utility

Research & Development, Education, Technical DIY

Extra User Peripheral(OnBoard)

1 x User LED Green (P2.0 Pin), 1xUser Switch P3.3

Weight

<200 Gram

Supported IC:

40Pin DIP 8051 IC(Board), 8051 & AVR For Programmer
