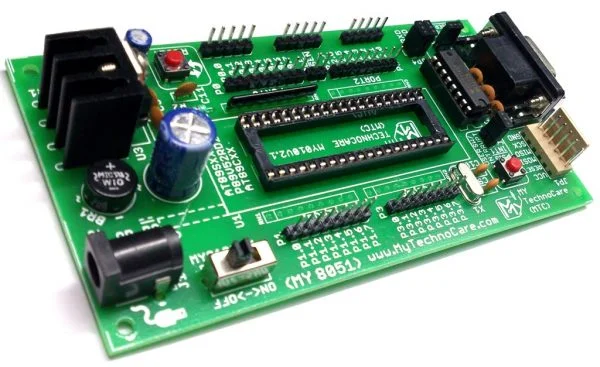

8051 Development Kit+ MAX232 Chip (Without AT89S52 Microcontroller IC)

Original price was: ₹590.00.Current price is: ₹422.00.

  • DIP 40 Pin IC Socket For Easy Insert/Removal of Chip.
  • On-board MAX232 Circuit for Easy Communication with a PC & other RS232 serial devices (GPS modules, GSM Modems, etc)
  • High-Quality FR-4(1.6 mm) PCB
  • On-Board bridge rectifier so the board can accept both AC & DC Input voltages Power supply
  • 5 mm Power Plug-in DC Jack | Power ON-OFF switch.
  • 5V regulator (LM7805) circuit.
  • Power indication RED LED.
  • On-Board GREEN USER LED at P2.0 through jumper JP3.
  • On-Board Input User Switch P3.3 through jumper JP2.
  • On-Board Input External Interrupt Switch (INT1) at P3.3 through jumper JP2.
  • On-board Quartz Crystal 11.05892 MHz
  • Support AT89S51, AT89S52, P89V51RD2, etc. 40-Pin DIP Chip
  • Port Extensions for all PORT with Detailed Labeling for Easy Identification of Pin
  • External Pull-Up resistors for Port 0
  • On-board ISP connector for loading HEX file into Microcontroller like AT89S51/52 etc.
  • Extra Vcc bus (5V and 12V) & GND bus for POWER Supply to the External Peripheral.
  • Four 3mm mounting Holes for easy mounting
  • On-board Reset button.

44 in stock

Description

8051 Development Kit with MAX232 (Without AT89S52 Microcontroller IC)

8051 Development Kit Board Support AT89S51, AT89S52, P89V51RD2, etc. 40-Pin DIP Chip

Description of 8051 Development Kit:

If you are learning microcontroller programming and want to make a project based on 8051 microcontrollers then this board will help you. With this board, you can develop and prototype with any of 8051(AT89S51, AT89S52, P89V51RD2, AT89Cxx) 40 pin microcontrollers. The board has also a status LED. The 1.5 Amp bridge rectifiers allow this board to be powered with both AC and DC power supply adapters. The board having an RS232 Serial port for flashing the P89V51RD2 (NXP) microcontroller and also use for interfacing GSM module, GPS module, RFID module, DS1307 RTC. Furthermore, there is a 5V, 12V, GND power bus which allows to power external peripherals module.

Features of 8051 Development Board:

  • DIP 40 Pin Microcontroller IC Socket For Easy Insert and Removal of Microcontroller IC.
  • On-board MAX232 Interface Circuit for Easy Communication with a computer & other RS232 serial devices (GPS modules, GSM Modems, etc)
  • High-quality FR-4(1.6 mm) PCB
  • On-Board bridge rectifier so that the board can accept both AC and DC Input voltages Power supply
  • Recommended Input Voltage   : 9-12V
  • Min-Max Input Voltage              : 9-18V
  • On-Board 5 mm Power Plug-in DC Jack
  • On-Board 5V regulator (LM7805) circuit.
  • On-Board Power ON-OFF switch.
  • On-Board power indication RED LED.
  • On-Board GREEN USER LED connected to P2.0 through jumper JP3.
  • On-Board Input User Switch P3.3 through jumper JP2.
  • On-Board Input External Interrupt Switch (INT1) at P3.3 through jumper JP2.
  • On-board Quartz Crystal 11.05892 MHz
  • Port Extensions for all PORT with Detailed Pin Labeling for Easy Identification of Pin
  • External Pull-Up resistors for Port 0
  • On-board ISP connector for loading HEX file into Microcontroller like AT89S51/52 etc.
  • Vcc bus (5V and 12V) & GND bus provided to Give POWER Supply to the External Peripheral.
  • Four 3mm mounting Holes for easy mounting
  • On-board Reset button.
  • Dimensions: 12cm x 6.4cm

Download 8051 kit document:

Download Datasheet User Manual – 8051 Development Board

Download Circuit Diagram – 8051 Microcontroller Board

Package Contents:

1 X 8051 Development Board Without AT89S52 Microcontroller IC

1 X MAX232 On-Board RS232 driver IC

NOTE:

  • POWER SUPPLY Adapter IS NOT Included WITH THIS ITEM.
  • AT89S52 Microcontroller IC is NOT Included With This Item.

Have any queries, please contact Us




Additional information

Weight54 g
Dimensions120 × 64 × 18 mm
Brand

MY TechnoCare, Means Your Care

Condition

New: A brand-new, unused and undamaged item.

Power Supply

9 to 12 Volt AC/DC

Type

Development Project Board

Memory

For AT89S52 (8K bytes of Flash, 256 bytes RAM)

Processor Speed

For 89S52 (Up to 33 MHz) (On Board 11.0592MHz)

Input/Output

4xGeneral Purpose IO PORT,1 x Serial RS232 DB9 Port

Extra User Interrupt

1 x On Board External Interrupt Switch (INT1)

Communication Port

1 x Serial DB9 Connector

PCB Quality

FR4 Glass epoxy, High Quality

Installation

Four Mounting holes 3.0 mm for Easy Mounting

Extra User Peripheral(OnBoard)

1 x User LED Green (P2.0 Pin), 1xUser Switch P3.3

Processor Socket

DIP 40 Pin IC Socket

Display Technology

LED Indicator

Functionality

R&D,Product Development,Industrial & Student Hobby

Connectivity

Serial RS232

Wired or Wireless

Wired

Utility

Research & Development, Education, Technical DIY

Weight

<100 Gram

Supported IC

AT89S51,AT89S52, P89V51RD2 etc. 40-Pin DIP ICs

Bundled Items

1 x 8051 Development Board+MAX232 (Without 89S52)

Model

MY010V2.1

NOTE

AT89S52 Microcontroller IC Not Included With Item
