8051 Development Board Microcontroller Project Low Cost Development Board with MAX232 & AT89S52 IC Support AT89S51,AT89S52, P89V51RD2, etc 40 Pin DIP 8051 IC | Full development KIT MY8051 Small Development Board Project Board MY TechnoCare www.MyTechnocare.com

8051 Development Board With Atmel AT89S52 Microcontroller & MAX232 IC

Rated 5.00 out of 5 based on 1 customer rating
(1 customer review)

677.00 377.00

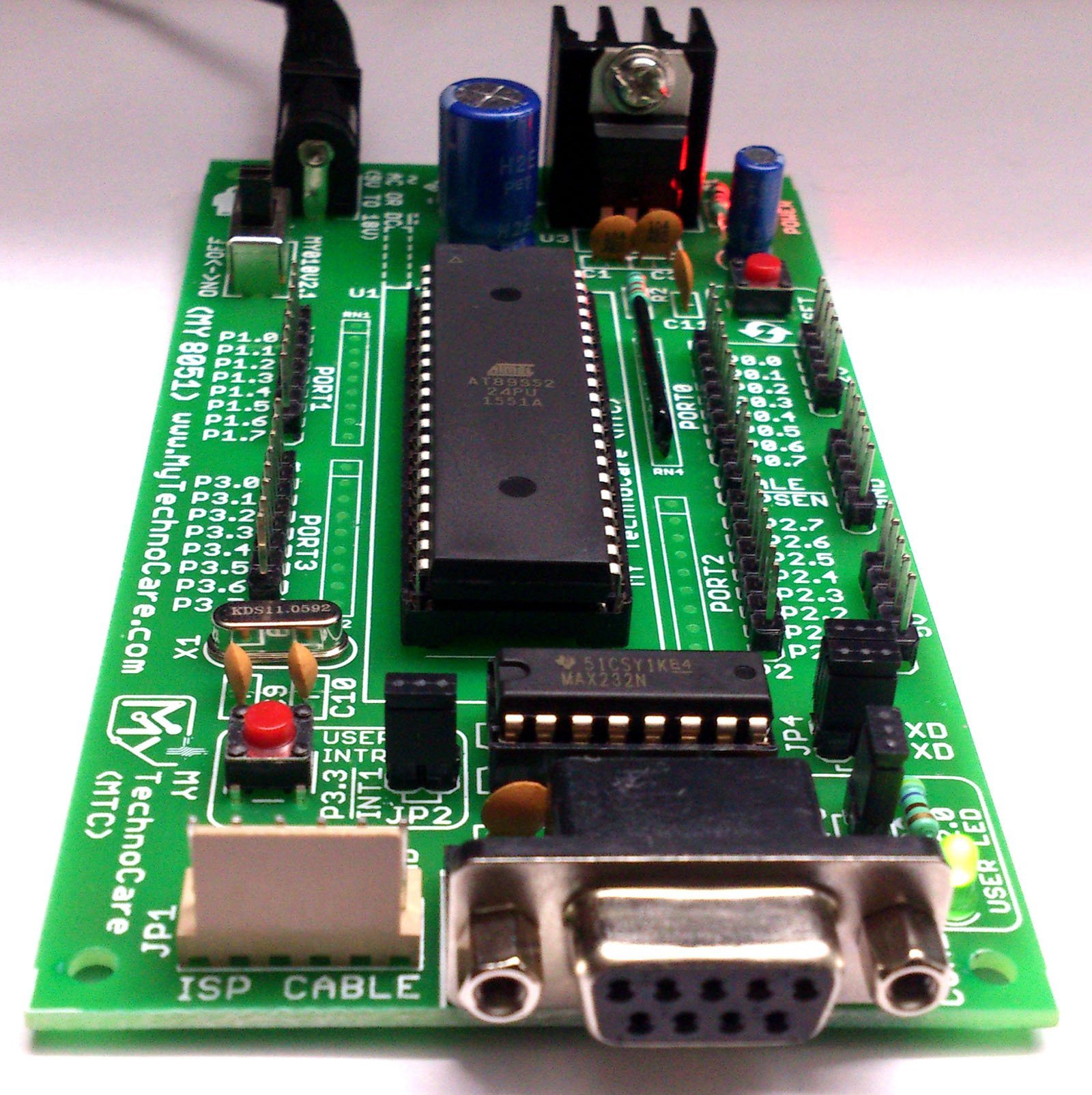

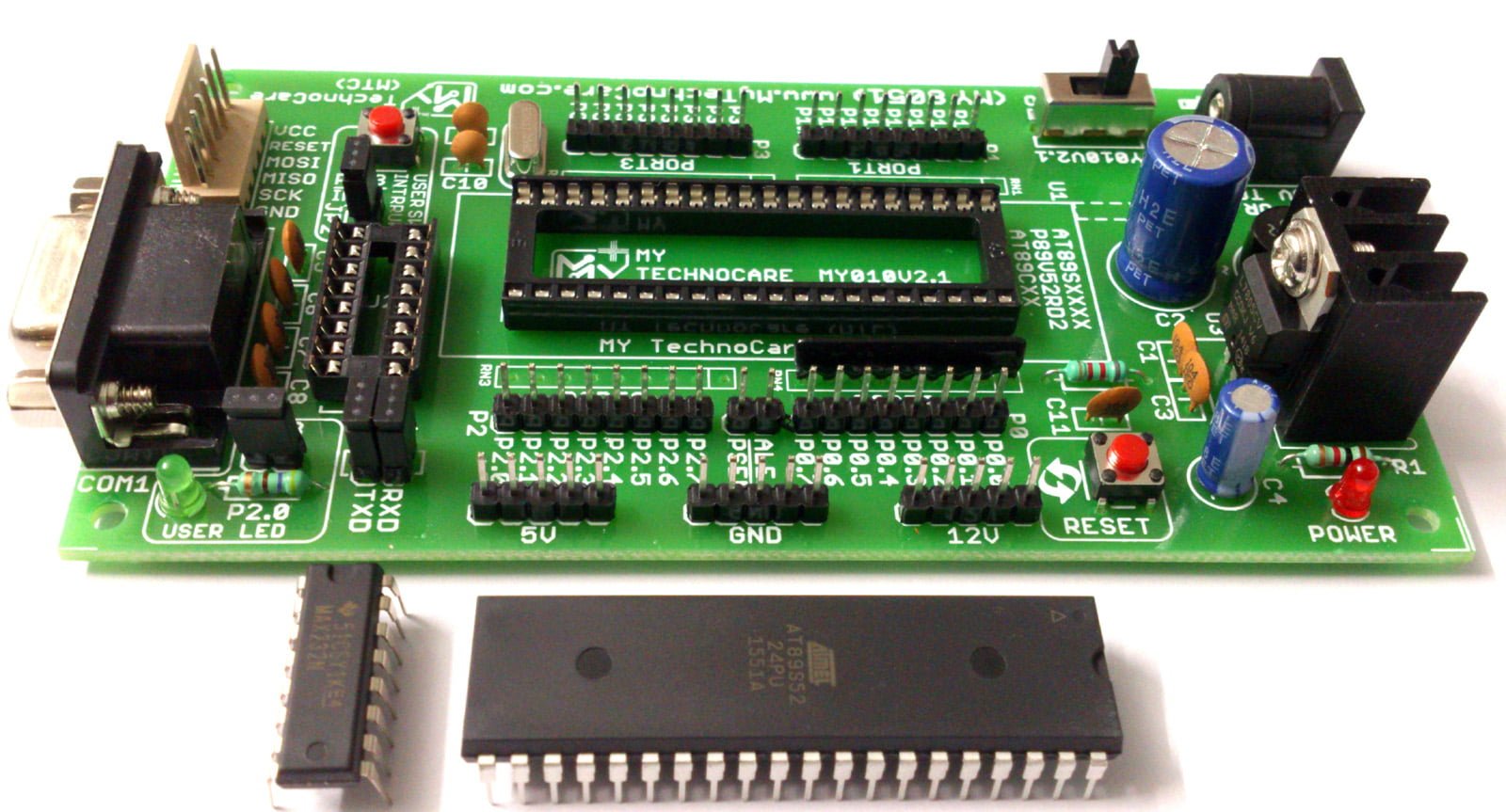

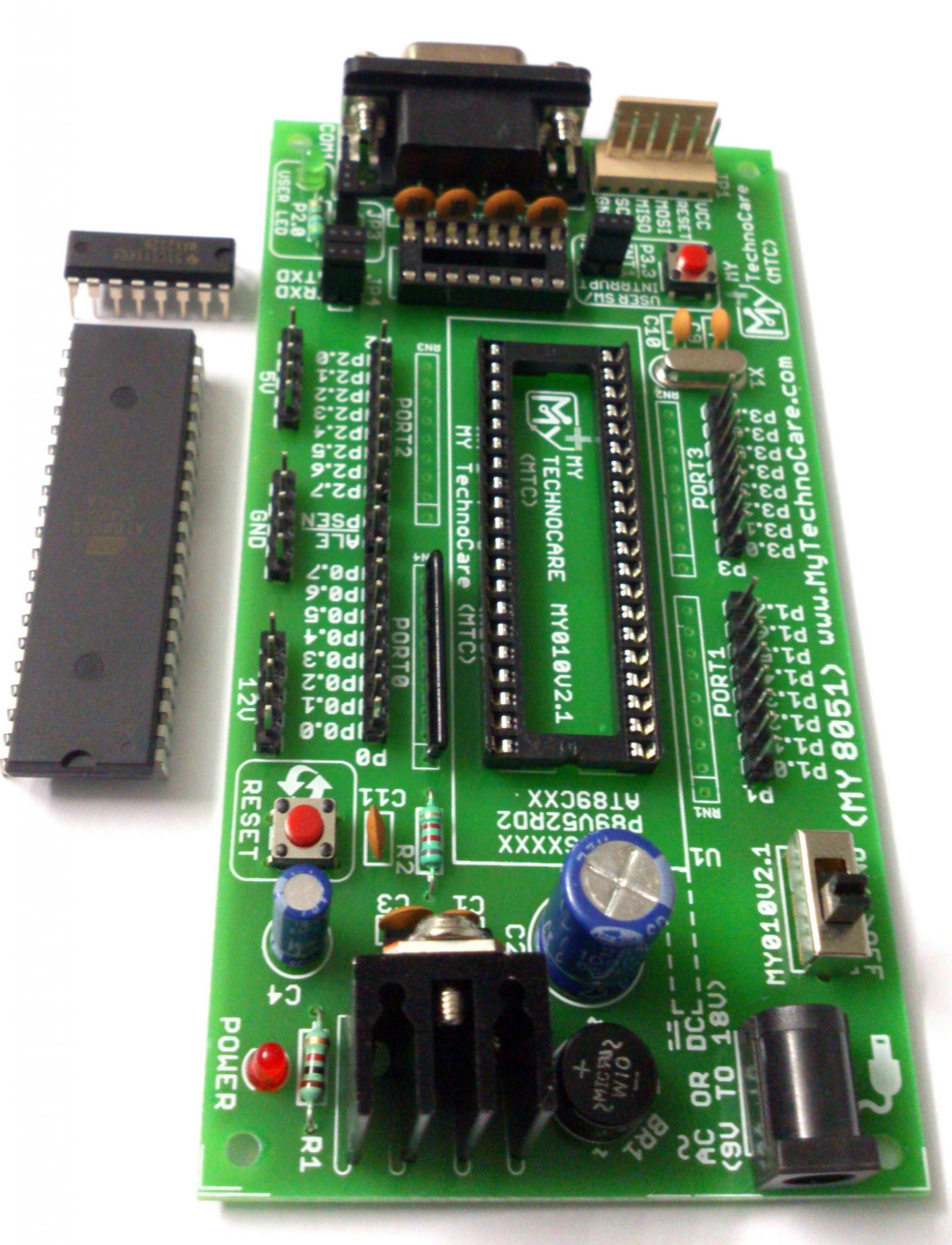

  • DIP 40 Pin IC Socket For Easy Insert/Removal of Chip.
  • On-board MAX232 Circuit for Easy Communication with a PC & other RS232 serial devices (GPS modules, GSM Modems, etc)
  • High quality FR-4(1.6 mm) PCB
  • On-Board bridge rectifier so board can accept both AC & DC Input voltages Power supply
  • 5 mm Power Plug-in DC Jack | Power ON – OFF switch.
  • 5V regulator (LM7805) circuit.
  • Power indication RED LED.
  • On-Board GREEN USER LED at P2.0 through jumper JP3.
  • On-Board Input User Switch P3.3 through jumper JP2.
  • On-Board Input External Interrupt Switch (INT1) at P3.3 through jumper JP2.
  • On-board Quartz Crystal 11.05892 MHz
  • Support AT89S51, AT89S52, P89V51RD2 etc. 40-Pin DIP Chip
  • Port Extensions for all PORT with Detailed Labeling for Easy Identification of Pin
  • External Pull-Up resistors for Port 0
  • On-board ISP connector for loading HEX file into Microcontroller like AT89S51/52 etc.
  • Extra Vcc bus (5V and 12V) & GND bus for POWER Supply to the External Peripheral.
  • Four 3mm mounting hole for easy mounting
  • On-board Reset button.

6 in stock

Description

8051 Development Board with MAX232 & AT89S52 Microcontroller IC

8051 Development Board or 8051 Project Kit Support ATmel AT89S51, AT89S52, P89V51RD2 etc. 40-Pin DIP Microcontroller Chip

About of 8051 Development Board:

If you are learning microcontroller programming and want to make project based on 8051 microcontroller than this board will help you. With this Development board you can develop and prototype with any of 8051(AT89S51, AT89S52, P89V51RD2, AT89Cxx) 40 pin microcontrollers. The board have also status LED. Because of The 1.5 Amp bridge rectifiers allow this board to be powered with both AC and DC power supply adapters. Board having RS232 Serial port for flashing P89V51RD2 (NXP) microcontroller and it is also use for interfacing GSM module, GPS module , RFID module.Further more, There is 5V, 12V, GND power bus which allow to power external peripherals module.

FEATURES of 8051 Project Board:

  • DIP 40 Pin Microcontroller IC Socket For Easy Insert and Removal of Microcontroller IC.
  • On-board MAX232 Interface Circuit for Easy Communication with a computer & other RS232 serial devices (GPS modules, GSM Modems, etc)
  • High quality FR-4(1.6 mm) PCB
  • On-Board bridge rectifier so that board can accept both AC and DC Input voltages Power supply
  • Recommended Input Voltage   : 9 -12V
  • Min-Max Input Voltage               : 9 -18V
  • On-Board 5 mm Power Plug-in DC Jack
  • On-Board 5V regulator (LM7805) circuit.
  • On-Board Power ON – OFF switch.
  • On-Board power indication RED LED.
  • On-Board GREEN USER LED connected to P2.0 through jumper JP3.
  • On-Board Input User Switch P3.3 through jumper JP2.
  • On-Board Input External Interrupt Switch (INT1) at P3.3 through jumper JP2.
  • On-board Quartz Crystal 11.05892 MHz
  • Port Extensions for all PORT with Detailed Pin Labeling for Easy Identification of Pin
  • External Pull-Up resistors for Port 0
  • On-board ISP connector for loading HEX file into Microcontroller like AT89S51/52 etc.
  • Vcc bus (5V and 12V) & GND bus provided to Give POWER Supply to the External Peripheral.
  • Four 3mm mounting hole for easy mounting
  • On-board Reset button.
  • Dimensions: 12cm x 6.4cm

Download 8051 kit document:

Download Datasheet User Manual – 8051 Development Board

Download Circuit Diagram – 8051 Microcontroller Board

Package Contents:

1 X 8051 Development Board

1 X AT89S52 On-Board Microcontroller IC

1 X MAX232 On-Board RS232 driver IC

NOTE: POWER SUPPLY Adapter IS NOT Included WITH THIS ITEM.

Have any queries,Please Contact Us

Additional information

Weight90 g
Dimensions120 × 64 × 18 mm
Brand

MY TechnoCare

Model

MY010V2.1

Type

Development Project Board

PCB Quality

FR4 Glass epoxy, High Quality

Processor Speed

For 89S52 (Up to 33 MHz) (On Board 11.0592MHz)

Memory

For AT89S52 (8K bytes of Flash, 256 bytes RAM)

Supported IC

AT89S51,AT89S52, P89V51RD2 etc. 40-Pin DIP ICs

Input/Output

4xGeneral Purpose IO PORT,1 x Serial RS232 DB9 Port

Extra User Interrupt

1 x On Board External Interrupt Switch (INT1)

Communication Port

1 x Serial DB9 Connector

Installation

Four Mounting holes 3.0 mm for Easy Mounting

Extra User Peripheral(OnBoard)

1 x User LED Green (P2.0 Pin), 1xUser Switch P3.3

Processor Socket

DIP 40 Pin IC Socket

Display Technology

LED Indicator

Functionality

R&D,Product Development,Industrial & Student Hobby

Connectivity

Serial RS232

Wired or Wireless

Wired

Utility

Research & Development, Education, Technical DIY

Bundled Items

1 x 8051 Development Board With MAX232 & 89S52

MPN

MY010V2.1

UPC

Does Not Apply

1 review for 8051 Development Board With Atmel AT89S52 Microcontroller & MAX232 IC

  1. Rated 5 out of 5

    surya roy

    It Great Board ,Compact size and best for learning 8051 Microcontroller or starting embedded programming….

Add a review

Your email address will not be published. Required fields are marked *
